Active Alignment

Image Quality and System Reliability

Active Alignment technology delivers superior image quality through sub-micron precision in aligning the lens to the image sensor.

By minimizing misalignment tolerances, Active Alignment enhances repeatability, reduces calibration effort, and improves the overall yield in camera module production.

Flexibility for Scalable Manufacturing

The Active Alignment System enables precise lens-to-sensor assembly with seamless integration into automated, high-throughput lines.

Our technology ensures rapid cycle times, consistent optical alignment and maximizing production efficiency.

Innovative Imaging Precision

Leveraging state-of-the-art technology, our Active Alignment systems deliver unmatched precision and performance—ensuring optimal detail reproduction in advanced optical applications.

This enables consistently high image quality even under demanding conditions.

SCIO Automation delivers tailor-made Active Alignment systems that optimize camera sensor alignment using Modulation Transfer Function (MTF) analysis.

By evaluating real-time image quality through high-contrast test patterns and iterative positioning, our systems ensure sub-micron precision in optical performance.

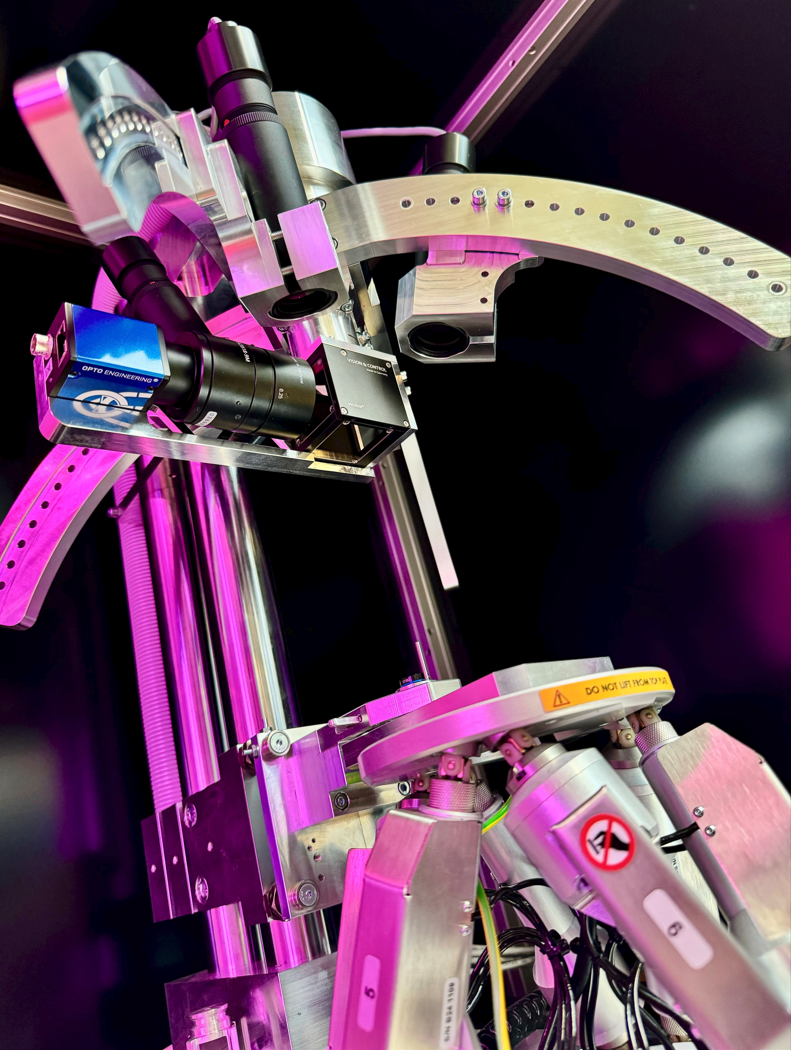

With six degrees of freedom via high-resolution hexapods (0.1 µm), integrated UV-curing, 100% inspection, and full MES connectivity, our automated and semi-automated solutions meet the most demanding industry standards for optical assembly.

Ideal for applications requiring reliable contrast transfer, precision lens-to-sensor alignment, and robust process data.

Active Alignment

The Active Alignment Approach

Image Quality and System Reliability

Flexibility for Scalable Manufacturing

Innovative Imaging Precision

"It’s not just about being precise. It’s about being precise, robust, and flexible – all at once."

Solutions for High-Precision Optical Assembly
